class: middle

Outline

Introduction

Design

How to run a Workflow

Workflows Tutorial

Live Demo

class: inverse, center, middle

Introduction

Introduction

systemPipeR provides a suite of R/Bioconductor packages for designing, building and running end-to-end analysis workflows on local machines, HPC clusters and cloud systems, while generating at the same time publication quality analysis reports

systemPipeR offers many utilities to build, control, and execute workflows entirely from R

The environment takes advantage of central community S4 classes of the Bioconductor ecosystem

Workflows are managed by generic workflow management containers supporting both analysis routines implemented in R code and/or command-line software

Simple annotation system targets

systemPipeR’s Core Functionalities

.center[ ]

Structural Features

– .left-column[

WF infrastructure

]

.right-column[ systemPipeR offers many utilities to build, control, and execute workflows entirely from R. The environment takes advantage of central community S4 classes of the Bioconductor ecosystem. Workflows are managed by generic workflow management containers supporting both analysis routines implemented in R code and/or command-line software. A layered monitoring infrastructure is provided to design, control and debug each step in a workflow. The run environment allows to execute workflows entirely or with a intuitive to use step-wise execution syntax using R’s standard subsetting syntax (runWF(sys[1:3])) or pipes (%>%). ]

Structural Features

.left-column[

WF infrastructure

Command-line support

]

.right-column[ An important feature of systemPipeR is support for running command-line software by adopting the Common Workflow Language (CWL). The latter is a widely adopted community standard for describing analysis workflows. This design offers several advantages such as:

seamless integration of most command-line software

support to run systemPipeR workflows from R or many other popular computer languages

efficient sharing of workflows across different workflow environments. ]

Structural Features

.left-column[

WF infrastructure

Command-line support

Parallel evaluation

]

.right-column[ The processing time of workflows can be greatly reduced by making use of parallel evaluations across several CPU cores on single machines, or multiple nodes of computer clusters and cloud-based systems. systemPipeR simplifies these parallelization tasks without creating any limitations for users who do not have access to high-performance computer resources ]

Structural Features

.left-column[

WF infrastructure

Command-line support

Parallel evaluation

Reports infrastructure

]

.right-column[ systemPipeR’s reporting infrastructure includes three types of interconnected reports each serving a different purpose:

a scientific report, based on R Markdown, contains all scientifically relevant results

a technical report captures all technical information important for each workflow step, including parameter settings, software versions, and warning/error messages, etc.

a visual report depicts the entire workflow topology including its run status in form of a workflow graph

]

Structural Features

.left-column[

WF infrastructure

Command-line support

Parallel evaluation

Reports infrastructure

Shiny Web Interface

]

.right-column[ Recently, the systemPipeShiny package has been added that allows users to design workflows in an interactive graphical user interface (GUI). In addition to designing workflows, this new interface allows users to run and to monitor workflows in an intuitive manner without the need of knowing R. ]

Structural Features

.left-column[

WF infrastructure

Command-line support

Parallel evaluation

Reports infrastructure

Shiny Web Interface

Workflow Templates

]

.right-column[ A rich set of end-to-end workflow templates is provided by this project for a wide range omics applications. In addition, users can contribute and share their workflows with the community by submitting them to a central GitHub repository ]

Important Functions

.small[

Important Functions

.small[

class: inverse, center, middle

Design

Workflow Management Solutions

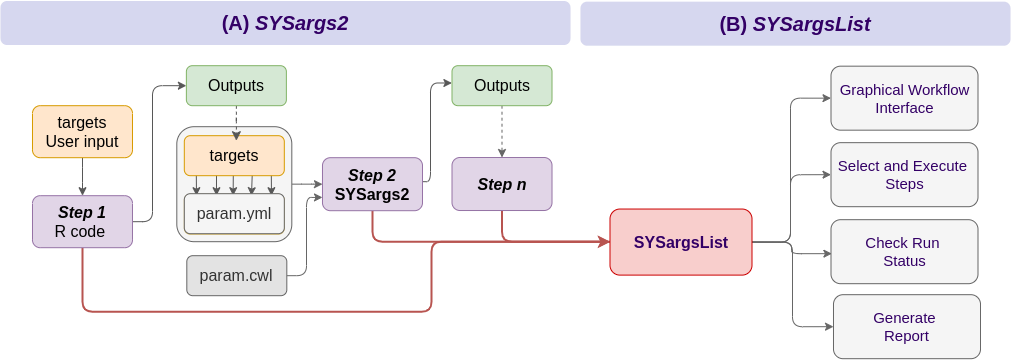

systemPipeR central concept for designing workflows is workflow management containers (S4 class)

SYSargs2 controls workflow steps with input/output file operations

SYSargs2 requires a targets and a set of workflow definition files (here param.cwl and param.yml)

SYSargsList objects organize one or many SYSargs2 containers in a single compound object capturing all information required to run, control and monitor complex workflows from start to finish

.center[ ]

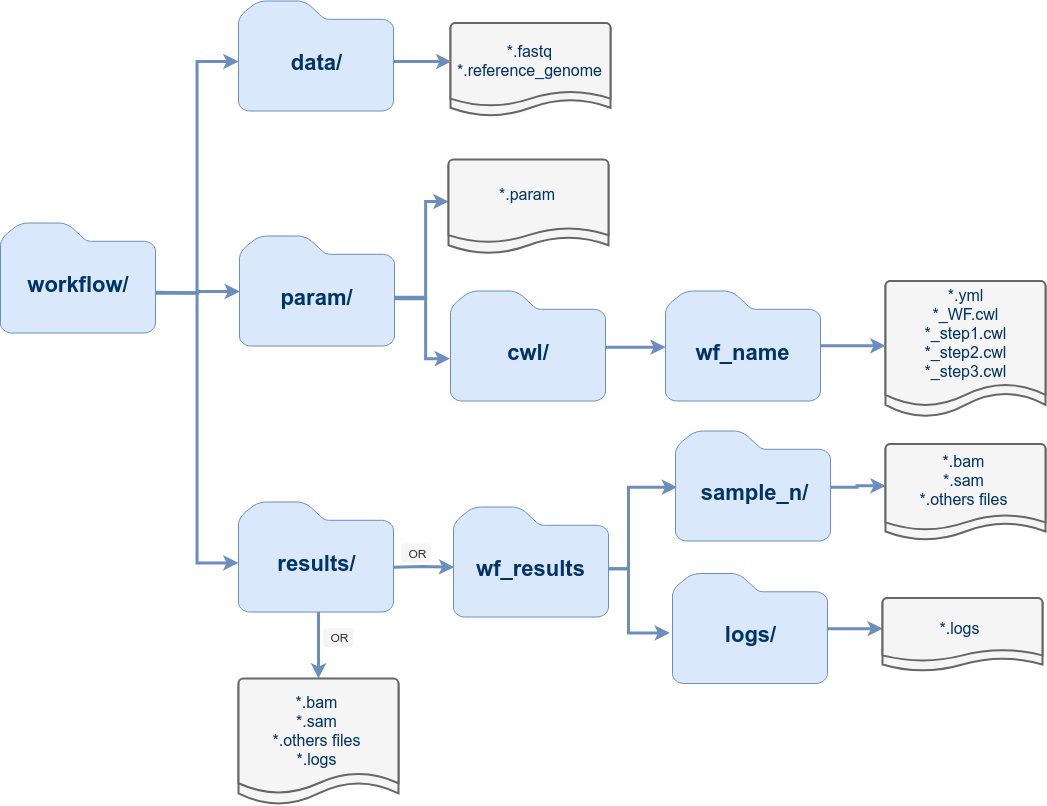

Directory Structure

The workflow templates generated by genWorkenvir contain the following preconfigured directory structure:

Workflows Collection

Browse pipelines that are currently available as part of the systemPipeR toolkit

.small[

WorkFlow	Description	Version	GitHub	CI Testing
systemPipeChIPseq	ChIP-Seq Workflow Template	v1.0
systemPipeRIBOseq	RIBO-Seq Workflow Template	v1.0
systemPipeRNAseq	RNA-Seq Workflow Template	v1.0
systemPipeVARseq	VAR-Seq Workflow Template	v1.0
systemPipeMethylseq	Methyl-Seq Workflow Template	devel
systemPipeDeNovo	De novo transcriptome assembly Workflow Template	devel
systemPipeCLIPseq	CLIP-Seq Workflow Template	devel
systemPipeMetaTrans	Metatranscriptomic Sequencing Workflow Template	devel
]

class: inverse, center, middle

CWL

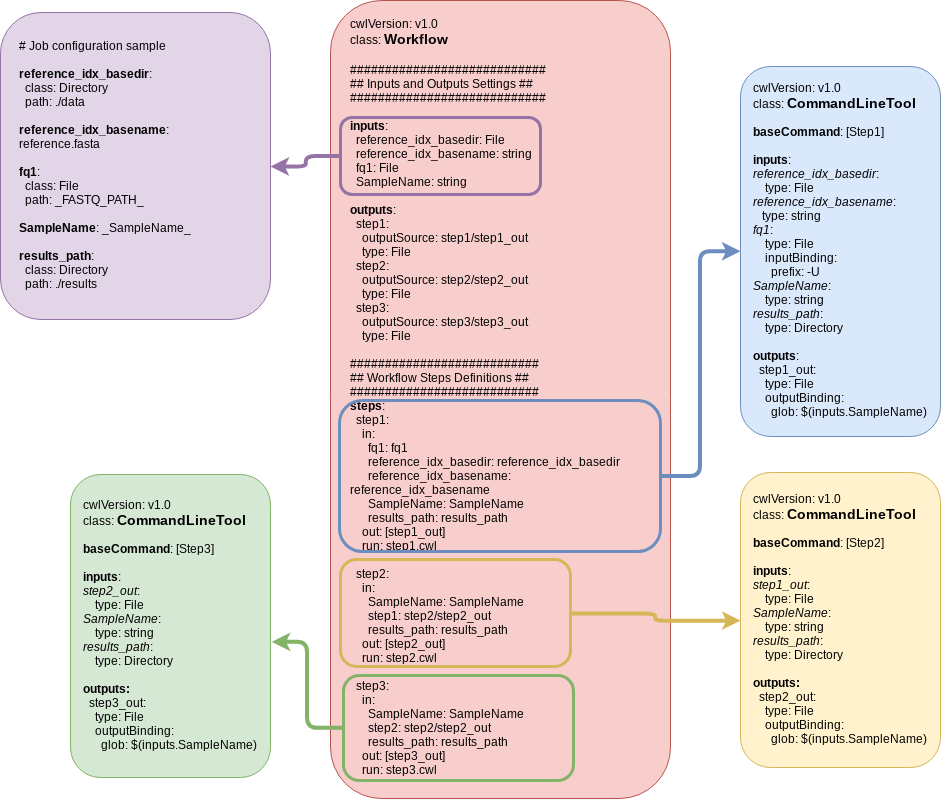

CWL

TODO: Add section with CWL details

.center[ ]

CWL and SPR

TODO: How to use CWL definition with systemPipeR

• SYSargs2 instances are constructed from a targets file and two param file
  • hisat2-mapping-se.cwl file contains the settings for running command-line software
  • hisat2-mapping-se.yml file define all the variables to be input in the specific command-line step

targets <- system.file("extdata", "targets.txt", package="systemPipeR")
dir_path <- system.file("extdata/cwl/hisat2/hisat2-se", package="systemPipeR")
align <- loadWF(targets=targets, wf_file="hisat2-mapping-se.cwl",
                   input_file="hisat2-mapping-se.yml", dir_path=dir_path)
align <- renderWF(align, inputvars=c(FileName="_FASTQ_PATH_", SampleName="_SampleName_"))

## Instance of 'SYSargs2':
##    Slot names/accessors:
##       targets: 18 (M1A...V12B), targetsheader: 4 (lines)
##       modules: 2
##       wf: 0, clt: 1, yamlinput: 7 (components)
##       input: 18, output: 18
##       cmdlist: 18
##    WF Steps:
##       1. hisat2-mapping-se.cwl (rendered: TRUE)

CWL and SPR

SYSargs2 instance

• Slots and accessor functions have the same names

names(align)
#  [1] "targets"       "targetsheader" "modules"       "wf"            "clt"
#  [6] "yamlinput"     "cmdlist"       "input"         "output"        "cwlfiles"
# [11] "inputvars"

• cmdlist return command-line arguments for the specific software, here HISAT2 for the first sample

cmdlist(align)[1]
# $M1A
# $M1A$`hisat2-mapping-se.cwl`
# [1] "hisat2 -S results/M1A.sam  -x ./data/tair10.fasta  -k 1  --min-intronlen 30  --max-intronlen 3000  -U ./data/SRR446027_1.fastq.gz --threads 4"

• The output components of SYSargs2 define all the expected output files for each step in the workflow; some of which are the input for the next workflow step

output(align)[1]
# $M1A
# $M1A$`hisat2-mapping-se.cwl`
# [1] "results/M1A.sam"

class: inverse, center, middle

Metadata

Targets file organizes samples

• Structure of targets file for single-end (SE) library

targetspath <- system.file("extdata", "targets.txt", package="systemPipeR")
read.delim(targetspath, comment.char = "#")[1:3,1:4]

##                      FileName SampleName Factor SampleLong
## 1 ./data/SRR446027_1.fastq.gz        M1A     M1  Mock.1h.A
## 2 ./data/SRR446028_1.fastq.gz        M1B     M1  Mock.1h.B
## 3 ./data/SRR446029_1.fastq.gz        A1A     A1   Avr.1h.A

• Structure of targets file for paired-end (PE) library

targetspath <- system.file("extdata", "targetsPE.txt", package="systemPipeR")
read.delim(targetspath, comment.char = "#")[1:3,1:5]

##                     FileName1                   FileName2 SampleName Factor
## 1 ./data/SRR446027_1.fastq.gz ./data/SRR446027_2.fastq.gz        M1A     M1
## 2 ./data/SRR446028_1.fastq.gz ./data/SRR446028_2.fastq.gz        M1B     M1
## 3 ./data/SRR446029_1.fastq.gz ./data/SRR446029_2.fastq.gz        A1A     A1
##   SampleLong
## 1  Mock.1h.A
## 2  Mock.1h.B
## 3   Avr.1h.A

Integration with SummarizedExperiment

• Integrates targets files and count table from systemPipeR to a SummarizedExperiment object

## Create an object with targets file and comparison and count table
sprSE <- SPRdata(targetspath = targetspath, cmp=TRUE)
metadata(sprSE)
# $version
# [1] ‘1.23.9’
#
# $comparison
# $comparison$CMPset1
#       [,1]  [,2]
#  [1,] "M1"  "A1"
#  [2,] "M1"  "V1"
#  [3,] "A1"  "V1"
#  [4,] "M6"  "A6"

colData(sprSE)
# DataFrame with 18 rows and 6 columns
#                    FileName  SampleName      Factor  SampleLong
#                 <character> <character> <character> <character>
# M1A  ./data/SRR446027_1.f..         M1A          M1   Mock.1h.A
# M1B  ./data/SRR446028_1.f..         M1B          M1   Mock.1h.B
# ...                     ...         ...         ...         ...
# M12B ./data/SRR446040_1.f..        M12B         M12  Mock.12h.B

class: inverse, center, middle

Live Demo

Install Package

Install the systemPipeRdata package from Bioconductor:

if (!requireNamespace("BiocManager", quietly=TRUE))
    install.packages("BiocManager")
BiocManager::install("systemPipeR")

Load Package and Documentation

Load package:

library("systemPipeR")

Access help:

library(help="systemPipeR")
vignette("systemPipeR")

Quick Start

Load Sample Workflow

systemPipeRdata

• Helper package to generate with a single command workflow templates for systemPipeR
• Includes sample data for testing
• User can create new workflows or change and extend existing ones
• Template Workflows:
  • Sample workflows can be loaded with the genWorkenvir function from systemPipeRdata

Generate workflow template:

library(systemPipeRdata)
genWorkenvir(workflow="rnaseq")
setwd("rnaseq")

More details about systemPipeRdata package here

Install Workflow

Check the workflow template availability

availableWF(github = TRUE)

# $systemPipeRdata
# [1] "chipseq" "new"     "riboseq" "rnaseq"  "varseq"
#
# $github
#                          workflow                       branches version                                               html       description
# 1   systemPipeR/systemPipeChIPseq                         master release   https://github.com/systemPipeR/systemPipeChIPseq Workflow Template
# 2   systemPipeR/systemPipeRIBOseq                         master release   https://github.com/systemPipeR/systemPipeRIBOseq Workflow Template
# 3    systemPipeR/systemPipeRNAseq cluster, master, singleMachine release    https://github.com/systemPipeR/systemPipeRNAseq Workflow Template
# 4    systemPipeR/systemPipeVARseq                         master release    https://github.com/systemPipeR/systemPipeVARseq Workflow Template
# 5   systemPipeR/systemPipeCLIPseq                         master   devel   https://github.com/systemPipeR/systemPipeCLIPseq Workflow Template
# 6    systemPipeR/systemPipeDeNovo                         master   devel    https://github.com/systemPipeR/systemPipeDeNovo Workflow Template
# 7 systemPipeR/systemPipeMetaTrans                         master   devel https://github.com/systemPipeR/systemPipeMetaTrans Workflow Template
# 8 systemPipeR/systemPipeMethylseq                         master   devel https://github.com/systemPipeR/systemPipeMethylseq Workflow Template

Dynamic Workflow Template

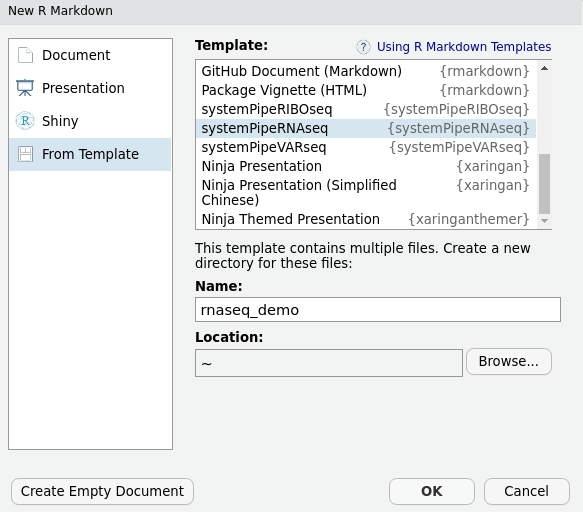

Create dynamic Workflow Templates with RStudio

File -> New File -> R Markdown -> From Template .center[ ]

Run a Workflow

.left-column[

Setup

]

.right-column[

library(systemPipeR)
targetspath <- system.file("extdata", "targets.txt", package="systemPipeR")
read.delim(targetspath, comment.char = "#")[1:4,1:4]

##                      FileName SampleName Factor SampleLong
## 1 ./data/SRR446027_1.fastq.gz        M1A     M1  Mock.1h.A
## 2 ./data/SRR446028_1.fastq.gz        M1B     M1  Mock.1h.B
## 3 ./data/SRR446029_1.fastq.gz        A1A     A1   Avr.1h.A
## 4 ./data/SRR446030_1.fastq.gz        A1B     A1   Avr.1h.B

script <- system.file("extdata/workflows/rnaseq", "systemPipeRNAseq.Rmd", package="systemPipeRdata")

]

Run a Workflow

.left-column[

Setup

initWF

]

.right-column[

sysargslist <- initWF(script = script, targets = targetspath, overwrite = TRUE)
# Project started with success: ./SYSproject and SYSconfig.yml were created.

]

Run a Workflow

.left-column[

Setup

initWF

configWF

]

.right-column[

sysargslist <- configWF(sysargslist, input_steps = "1:3")
sysargslist
# Instance of 'SYSargsList':
#    WF Steps:
# 1. Rmarkdown/HTML setting
# 2. Introduction
# 3. Samples and environment settings
#     3.1. Environment settings and input data
#     3.2. Required packages and resources
#     3.3. Experiment definition provided by `targets` file

]

Run a Workflow

.left-column[

Setup

initWF

configWF

runWF

]

.right-column[

sysargslist <- runWF(sysargslist, steps = "1:2")
# Step: 1: Introduction --> DONE
# Step: 2: Samples and environment settings --> DONE
# Step: 2.1: Environment settings and input data --> DONE
# Step: 2.2: Required packages and resources --> DONE
# Step: 2.3: Experiment definition provided by `targets` file --> DONE

sysargslist <- runWF(sysargslist, steps = "ALL")

]

Run a Workflow

.left-column[

Setup

initWF

configWF

runWF

renderReport

]

.right-column[

sysargslist <- renderReport(sysargslist = sysargslist)

]

How to Use Pipes %>%

Consider the following example, in which the steps are the initialization, configuration and running the entire workflow.

library(systemPipeR)
sysargslist <- initWF(script ="systemPipeRNAseq.Rmd", overwrite = TRUE) %>%
    configWF(input_steps = "1:6") %>%
    runWF(steps = "1:2")

class: inverse, center, middle

Project Updates

targets x SummarizedExperiment

Extension “SummarizedExperiment” methods:

sprSE <- addAssay(sprSE, assay(countMatrix), xName="countMatrix")
sprSE <- addMetadata(sprSE, list(targets), xName="metadata")

New Function:

## Create empty SummarizedExperiment
sprSE <- SPRdata()

## Create an object with targets file and comparison and count table
sprSE <- SPRdata(counts = countMatrix, cmp=TRUE, targetspath = targetspath)
metadata(sprSE)
colData(sprSE)
assays(sprSE)

SPR Paper

Link to draft

Added the main points to discuss in the draft

Writing: Results and introduction

Improve Graphical Abstract

Show case?

SYSargsList

Explain how SYSargsList is implemented - Vignette

.small[

Improve statusWF()

Visualization in systemPipeR

Add to vignette (SPR or SPS)

• exploreDDS, exploreDDSplot, GLMplot, MAplot, MDSplot, PCAplot, hclustplot, heatMaplot, tSNEplot, volcanoplot

Enrichment analysis and visualization tool for SPR

• Integration with FGSEA

WebSite

Updated the vignette

Added systemPipeRdata vignette and presentation: link

Redirect http://girke.bioinformatics.ucr.edu/systemPipeR/ to new page

Add content to FAQ section

Add tutorials videos

class: middle

Thanks!

Browse source code at

Ask a question about systemPipeR at Bioconductor Support Page

systemPipeRdata at Bioconductor

https://systempipe.org/
